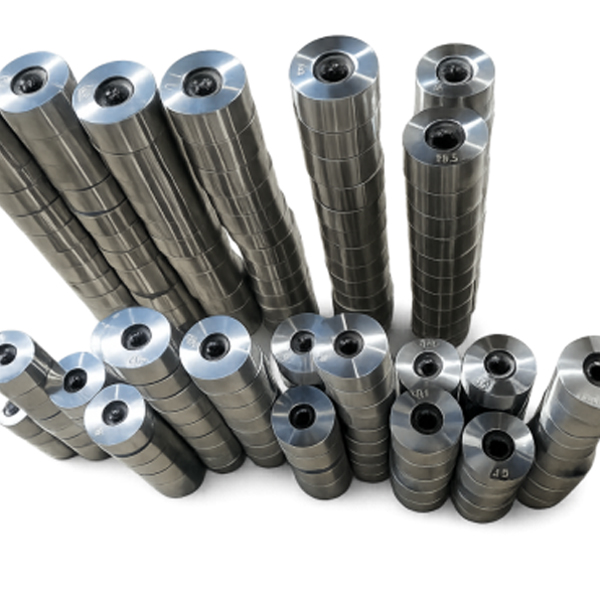

Tungsten Carbide (TC/WC) Wire Drawing Dies

UKing Diamond’s factory-direct cemented carbide dies provide heavy-duty performance, high impact resistance, stable dimensional control, and outstanding cost-efficiency for large-diameter ferrous and non-ferrous wire processing.

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Categories: TC wire drawing die

Description

Industrial Applications

While ultra-hard diamond dies excel in fine-microwire applications, Uking’s premium cemented carbide (tungsten steel) dies deliver the most economical, high-tonnage solution for heavy-duty drawing pipelines, specifically optimized for:

Steel Wire Industry: High-carbon steel wire, structural steel lines, welding wires, and spring steel manufacturing.

Large-Diameter Cable Stranding: Drafting, bundling, and twisting of bulk power cables and infrastructure wiring grids.

Non-Ferrous Heavy Drafting : Large-size aluminum rods, copper bars, and diverse hard alloy tube or rod profiling.

High-Loss High-Impact Operations: Pre-drawing stages where initial wire surfaces are rough, uneven, or scale-heavy, acting as a crucial defense tool before precision diamond finishing.

Technical Specifications

Material & Geometrical Parameters	Technical Control Standard Value
Chemical Composition	Ultra-Pure Tungsten Carbide (WC) Particles + Optimized Cobalt (Co) Binder
Diameter Range	0.10 mm – 45.00 mm (Comprehensive range for fine to ultra-large applications)
Material Micro-Hardness	14.5 – 16.5 GPa (Maintains exceptional structural rigidness)
Transverse Rupture Strength	≥ 2200 – 2800 N/mm² (High resistance against sudden shock and impact)
Thermal Sintering Limit	Up to 2,800 °C (Excellent thermal stability under heavy dry lubrication friction)
Bore Concentricity Control	≤ 0.005 mm (Guarantees uniform area reduction during high-tension extrusion)
Surface Finish of Inner Core	Ra ≤ 0.1 μm (Mirror-polished via advanced ultrasonic polishing equipment)

Product Details

1. Premium Metallurgical Matrix & Optimized Cobalt Balance

Uking Diamond’s tungsten carbide (TC) drawing dies are manufactured utilizing sub-micron tungsten carbide particles seamlessly bonded in a highly optimized cobalt matrix. By strictly regulating the WC-to-Cobalt ratio, our metallurgical engineering ensures an optimal balance between exceptional wear resistance (hardness) and high fracture toughness.

Unlike generic tungsten steel modules on the market, our sintered compacts feature zero internal porosity, allowing the inner geometry to withstand intense radial pressures and extreme high-temperature environments up to 2800 °C without mechanical deformation.

2. The Ideal Economical Alternative for Structural High-Loss Lines

In multi-stage industrial wire drawing, using expensive PCD or ND dies for initial large-diameter or abrasive high-carbon steel wire drawing can be financially non-viable.

Uking’s cemented carbide dies provide a heavy-duty, low-cost operating framework. Featuring low energy consumption and an exceptionally low coefficient of friction under standard powder/dry lubricants, these dies handle highly abrasive metal processing with prolonged continuous stability, ensuring a predictable tool-change schedule and significantly lowering the cost per ton of finished metal.

Key Features

Extreme Shock & Impact Resistance: The robust cobalt-bonded cement matrix effortlessly absorbs sudden load spikes and vibrations common in high-speed steel cable twisting and structural wire drawing.

Massive Diameter Capabilities (Up to 45mm): Precision-engineered core geometries across the entire 0.1mm to 45mm spectrum, accommodating massive industrial conductors and heavy alloy tubing.

Outstanding Corrosion & Wear Immunity: High chemical inertness resists acidic or alkaline additives within generic heavy drawing lubricants, avoiding premature chemical erosion and scaling.

Advanced Internal Mirror Polish: Every die hole undergoes rigorous diamond-slurry finish polishing, achieving an ultra-smooth profile that minimizes metal shaving buildup and guarantees a clean surface on bulk conductors.

Are you trying to minimize tooling costs for your high-tonnage carbon steel wire or heavy cable stranding lines?

Backed by 20 years of superhard material metallurgical expertise in Henan, China, Uking Diamond provides customized TC die solutions with precise grade allocations matching your metal hardness and continuous drawing speed.

Contact our technical sales team today to request our factory price list, explore custom specifications from 0.1mm up to 45mm, or receive a quick trial quote. Let us optimize your production budget without sacrificing geometric accuracy!

FAQ

Q1: Why is Tungsten Carbide (TC) preferred over diamond dies for steel wire processing?

A: Tungsten Carbide (TC) wire drawing dies are the industry standard for processing ferrous and high-tensile materials such as carbon steel, stainless steel, galvanized wire, and large-diameter rod breakdown applications above 3.0 mm. Carbide is preferred over diamond for steel processing due to the chemical affinity between iron and carbon. At the elevated temperatures generated during high-speed drawing, carbon atoms in a diamond die diffuse into the ferrous wire, causing rapid chemical wear. In contrast, choosing to buy wire drawing dies from a professional wire drawing die manufacturer like UKing Diamond ensures you get specially formulated tungsten carbide. Our dies provide the optimal combination of hot hardness, extreme impact toughness, and thermal stability, offering a highly cost-effective solution for high-volume steel wire production.

Q2: What tungsten carbide grades does UKing Diamond offer as a wholesale wire drawing die supplier?

A: As a direct-factory wire drawing die supplier, UKing Diamond offers a complete matrix of premium WC-Co (Tungsten Carbide-Cobalt) grades engineered for specific mechanical shock loads and drawing environments:

Low-Cobalt Grades (4%–6% Co): Deliver the highest hardness (up to HV 1,700) and maximum wear resistance for fine steel wire and abrasive drawing.
Medium-Cobalt Grades (8%–12% Co): Provide a balanced matrix of hardness and fracture toughness, ideal for general-purpose industrial steel wire production.
High-Cobalt Grades (15%–25% Co): Offer maximum impact resistance and toughness for large-diameter rod breakdown and heavy area reductions.

Our technical experts at UKing Diamond assist clients in selecting the exact grade and optimizing reduction ratios based on your continuous line speeds.

Q3: Can worn TC wire drawing dies be reconditioned, and where can I buy reliable replacements?

A: Yes. The typical service life of a tungsten carbide die ranges from 50 to 300 tonnes of drawn wire, depending on lubrication and material. To help wire mills maximize their tooling investment, UKing Diamond provides professional die reconditioning and resizing services. When a bore shows signs of wear, our factory re-grinds and re-laps the internal geometry to the next standard larger diameter. This process completely restores the mirror finish and dimensional accuracy, significantly extending the die’s total operational lifespan. Whether you need to restore your current tooling or want to buy wire drawing dies with certified factory pricing, UKing Diamond is your trusted wire drawing die manufacturer for long-term cost reduction.
